Gardiner Plan Aligned w. 7 City Priorities (Sivathasan Collabo)

Info
  • View Elevation Sketch Page 1 & 2

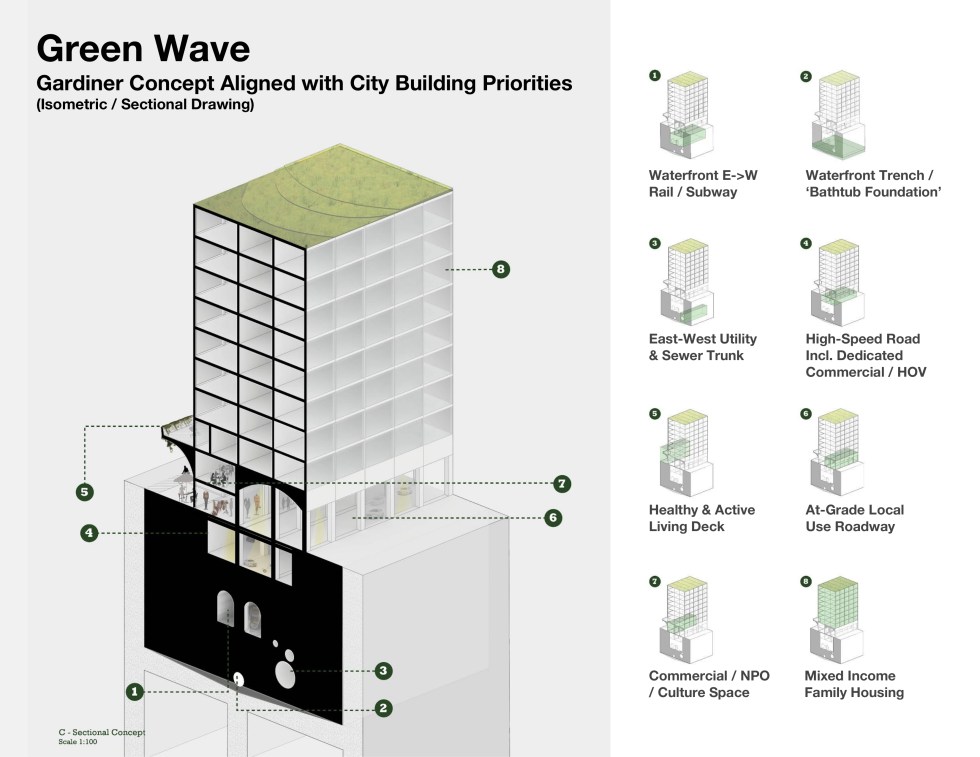

    Exploratory Concept for use of the Gardiner Footprint focused on 7 city building priorities, created in collaboration with Vineetha Sivathasan. May 2015

    Background:
    Based on the initial 2km study area and an average lot depth of 25m, the plan calls for adapting the Gardiner Expressway footprint to create:

    (1) East-West Waterfront Subway
    – Lengthy tunnel boring / EA process would be sidestepped by building subway into foundation excavation across waterfront, creating new high speed transit within years rather than decades.
    – Subway line initially from Union to Don, expanding east Woodbine Beach on the surface, utilizing old rail beds and west to High Park / Ontario Food Terminal with full Gardiner removal.
    – Transit pressures would be alleviated for all waterfront developments, facilitate eastern development opportunities and greatly accelerate creation of the Downtown Relief Line.

    (2) Utility / Sewer Relief Trunk
    – Utility and sewer line relief trunk for all downtown / waterfront towers added in excavation, stretching east to Woodbine Sewage facilities and west to the Humber Treatment Plant.
    – Currently downtown utilities are close to breaking point due to development pressure.

    (3) Underground Parking or Below Grade Roadway
    – 250 000 sq. m (+/-) of parking space for additional City revenue or roadway with deeper excavation.

    (4) Traffic Lanes Including Dedicated Commercial Lane
    – 2-4 vehicle traffic lanes at ground level with at least 1 priority truck / commercial lane.
    – Possibility of reverse flow depending on the time of day and green wall to filter noise and air pollution.

    (5) Active Living Deck
    – Elevated active living deck / bike highway facing waterfront, with patio space for stores below.

    (6) Commercial / Retail / Non profit / Culture space
    – Commercial / retail and non profit / art space for sale or rent, including waterfront views.

    (7) Mixed Income Residential / Family Housing topped with Terraced Green Roof / Park
    – 1 875 000 sq meters (+/-) of prime residential and commercial space for the City to sell with a focus on adding mixed income and family dwelling space to downtown.
    – Full Gardiner demolition will add considerable value to all waterfront developments.
    – 9 ha / 5km sq. (+/-) of public parkland would be added via terraced green roof.
